diverter Damper Valves

We offer Diverter Damper Valves (DDV) in sizes from 150mm to 3000 mm in round shape and Square/ Rectangular Shape and Pressure rating up to PN 1. Different Sealing materials for 99.95% leak tightness are offered as per application requirement. As the name suggests it has one inlet and two outlets with one or two Flaps. Flow is coming from inlet and getting diverted to Outlet 1 or Outlet 2 as per the application requirement. Our Diverter Damper valves are designed for control and Isolation of Various nature of Flowing media like Flue Gases, Dusty, Corrosive, hazardous etc. Having Design temperature from -25

Deg. C to 825 Deg. C.

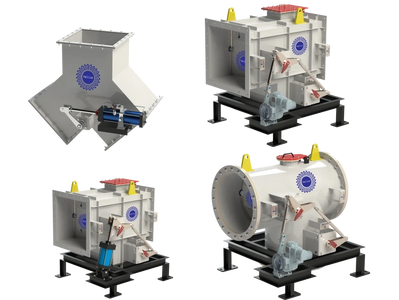

Diverter Damper Valves Can be offered in following design:

1. WHRB Design: ('T' Type; Box Type)

2. FLGATE Design: ('Y' Type)

Type: Circular / Rectangular / Square

Size Range: Ø150 mm to Ø 3000 mm & above

Material Of Construction:  ASTM A 36 / ASTM A 240 Type 304L / ASTM A 240 Type 316L / ASTM A 516 Gr-70 / ASTM A 387 Gr-11 / ASTM A 240 Type 310S/ A216 Gr. WCB / A351 Gr. CF8 / A351 Gr, CF8M  /As per Client Requirement.

Flowing Media: Air / Flue Gas  etc.

Design Temperature: -25°C to 825 °C

Pressure Ratings: PN 1

End Connection: Double Flanged and Butt Weld End

Face to Face:  Mfg. STD

Flange Drilling: ASME B16.5 / ASME B16.47 / BS EN 1092-1/ Mfg. STD.

Butt Weld Ends: ASME B16.25

Testing: AMCA 511 / ASME AG-1 / ANSI FCI 70-2 / Mfg. STD

Sealing Efficiency: 100 % Leak Proof [ Through Body and Stem] &

                                  99.95 % at Downstream.

Drive Mode: Manual / Motorized / Pneumatic / Hydraulic etc.

Design Codes and Standards: ASME B16.34 / ASME AG-1 / ERDA 76-21 /

                                                        API 609 / ASME SEC VIII; SEC V; SEC IX

SALIENT FEATURES:

• Bi-directional
• Spark Proof
• Low pressure drops
• 100% sealing to Atmosphere
• Lower Torque, Economical, Longer Life
• Lighter and Stronger Construction
• Maintenance-free Bearings
• Disc and Seal easily Replaceable.
• Anti-Blowout
• Seismic Qualified Design

APPLICATIONS:

• Boilers
• VAM's
• Flue Gas Desulphurization
• Water and Waste water treatment
• Scrubber & SCR System
• RTO System
• Any process lines that need the control or isolation of Flowing media

APPLICATION INDUSTRIES:

• Power plants
• Marine
• Steel
• Paper & Pulp
• Textiles
• Sugar & Ethanol
• Water & Wastewater Treatment
• Cement
• Fertilizers
• HVAC
• Food & Beverages
• Pharma
