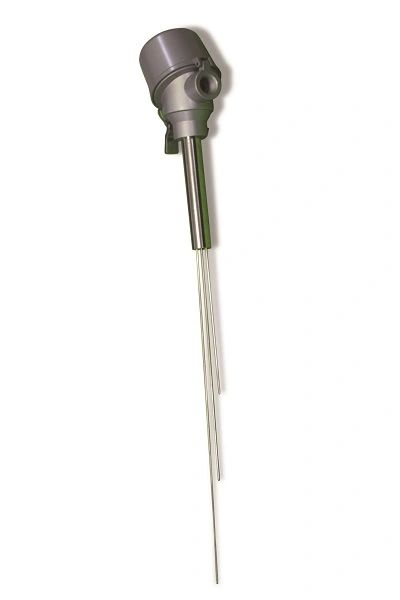

MULTIPOINT THERMOCOUPLES
Thermocouple Types: T, J, E, K, N, R, S, B
Temperature Range: -200°C To 1200°C
CLASS of TOLERANCE (Reference IEC584-2}: CLASS 1, CLASS 2
Standard Ml sizes: Ø 0.25, 0.5, 1, 1.5, 2, 3, 4, 4.5, 6, 8 mm
Configurations: Maximum 50 or more depending on applications and size
Grade of Protection: IP 55, IP 65,1P 67, ATEX, CCOE, FLAMEPROOF
Type of Termination: Plug and Socket, IP RATED HEAD, DIN and explosion-proof connection head, ETC
Connectors: MIL STD, NYLON, PLASTIC, CERAMIC
Type of Measurement: AIR, GAS, LIQUID IMMERSION, CONTACT, SURFACE
Sheaths: SS 316, 55 310, INCONEL 600, PYROSIL
