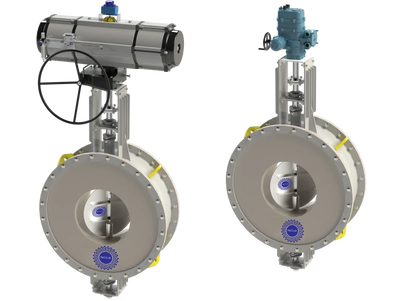

Refractory Lined Damper Valves

Helius Integration Offers comprehensive range of Refractory Lined Damper Valves in sizes from 150 mm to 4000 mm in Round and Square/Rectangular Shape and Pressure rating up to PN 1. Refractories are placed inside the body of the Damper Valves, and they are designed in different Layers of materials having different heat transfer coefficient

such that the temperature on outer surface of the body shall not be more than 70 to 90 Deg C. Different Sealing materials for 98% & 100% leak tightness are offered as per application

requirement. Our Refractory Lined Damper valves are designed for Isolation / Control of Various nature of Flowing media like hot Flue Gases, Hot Air, Blast furnace gases etc. Having Design temperature from 850 Deg. C to 1250 Deg. C. Refractory lined Damper Valves are the best and most economical solution for high temperature applications. Our

Damper Valves can be offered with the Anti-blowout, Air Seal, external Cooling, Seismic Qualified Design based on the application requirement. Our Selection Criteria of actuators

for automation is mainly based on the Torque values derived from the dynamic conditions of process parameters to ensure the genuine selection and Flawless operation of damper valves.

Size Range: 150 mm to 4000 mm & above

Material Of Construction:  ASTM A 36 + Refractory Lining/ IS2062 + Refractory Lining / ASTM A 516 Gr-70 + Refractory Lining / As per Client Requirement

Flowing Media: Hot Air / Flue Gas etc.

Design Temperature: Up to 1250 °C

Pressure Ratings: PN 1

End Connection: Double Flanged

Face to Face:  API 609 / ASME B16.10 / ISO 5752 / BS EN 558 / Mfg. STD.

Flange Drilling:  IS6392 /ASME B16.5 / ASME B16.47 / BS EN 1092-1/ Mfg. STD.

Testing:  ANSI FCI 70-2 /DIN3230 / Mfg. STD

Sealing Efficiency: 100 % Leak Proof [ Through Body and Stem] &

                                  99.95 % at Downstream.

Drive Mode: Manual / Motorized / Pneumatic / Hydraulic etc.

Design Codes and Standards: ASME B16.34 / ASME SEC VIII; SEC V; SEC IX / ASME AG-1 / ERDA 76-21

SALIENT FEATURES:

• Bi-directional
• Anti-Blowout
• 100% Sealing to Atmosphere
• Seismic Qualified Design
• Lighter and Stronger Construction
• Maintenance-free Bearings
• Disc are easily Replaceable

APPLICATIONS:

• Blast Furnace Lines
• Exhaust System
• Any process lines that need the control or isolation of Flowing media

APPLICATION INDUSTRIES:

• Power plants
• Steel Plants
• Coke oven Gas isolation
• Oil & Gas
