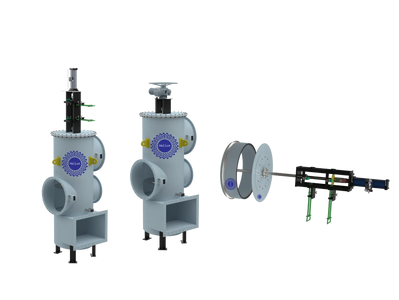

Poppet Damper Valve

We offer Poppet Damper Valve in sizes from 300mm to 2500 mm in round Shape and Pressure rating up to PN 1. Poppet Valves have the Disc connected through a shaft which reciprocates vertically with the actuator action. Different Sealing materials for 99.95% leak tightness are offered as per application requirement.  Our Poppet Damper valves are designed for control and Isolation of Various nature of Flowing media like Flue Gases, Dusty, Corrosive, hazardous etc. Having Design temperature from -25Deg. C to 825 Deg. C.

In many cases Poppet Damper Valves are fitted in the chambers / RTO's hence we undertake the complete responsibility of Fitting, Testing of Poppet valves in client's chambers or RTO's

Poppet Damper Valves Can be offered in Following types.

• Two Way Design
• Three Way Design

Type: Circular

Size Range: Ø300 mm to Ø 2500 mm & above

Material Of Construction:  ASTM A 36 / ASTM A 240 Type 304L / ASTM A 240 Type 316L / ASTM A 516 Gr-70 / ASTM A 387 Gr-11 / ASTM A 240 Type 310S/ A216 Gr. WCB / A351 Gr. CF8 / A351 Gr, CF8M  /As per Client Requirement.

Flowing Media: Air / Flue Gas  etc.

Design Temperature: -25°C to 825 °C

Pressure Ratings: PN 1

End Connection: Double Flanged and Butt Weld End

Face to Face:  Mfg. STD

Flange Drilling: ASME B16.5 / ASME B16.47 / BS EN 1092-1/ Mfg. STD.

Butt Weld Ends: ASME B16.25

Testing: AMCA 511 / ASME AG-1 / ANSI FCI 70-2 / Mfg. STD

Sealing Efficiency: 100 % Leak Proof [ Through Body and Stem] &

                                  99.95 % at Downstream.

Drive Mode: Manual / Motorized / Pneumatic / Hydraulic etc.

Design Codes and Standards: ASME B16.34 / ASME AG-1 / ERDA 76-21 /

                                                        API 609 / ASME SEC VIII; SEC V; SEC IX

SALIENT FEATURES:

• Uni-directional
• Spark Proof
• Low pressure drops
• 100% sealing to Atmosphere
• Lower Torque, Economical, Longer Life
• Lighter and Stronger Construction
• Maintenance-free Bearings
• Disc and Seal easily Replaceable.
• Anti-Blowout
• Seismic Qualified Design

APPLICATIONS:

• Bag Filter System / Baghouse
• RTO System
• Flowing Media Diversion
• Any process lines that need the control or isolation of Flowing media

APPLICATION INDUSTRIES:

• Oil & Gas
• Power plants
• Marine
• Steel
• Cement
• Fertilizers
• HVAC
• Food & Beverages
